2M-Xtreme is our upgraded counter-current system，it offers a greater water flow and higher speed, delivering significantly more power for a more intense swimming experience. It’s perfect for a variety of settings, including leisure swimming and training in public pools, infinity spa pools at high-end hotels, children’s lessons and adult fitness in gyms, low-impact aquatic therapy in rehabilitation centers, quiet, energy-efficient private pools for villas, and interactive lazy rivers in theme parks.
Counter-Current System Specification
| Model | Model 520 |
| Description | 2M-Xtreme |
| Input Voltage | 110V / 220V |
| Power Supply | 3000 W |
| Flow Volume | 1200 m³/h |
|
Water Outlet Area （length × width) |
80 × 22 cm |
| Flow Velocity | 0-1.8 m/s |
| Maximum Swimming Speed （100m) | 56'' |
|
Dimensions （length × width × height） |
113 × 80 × 54 cm |
| Weight | 120 kg |
Low-Voltage BLDC Motor Specification
| Model | Model 520 |
| Working Voltage | 24 V |
| Waterproof Rating | IP68 |
Paddlewheel VS. Propeller
While most manufacturers of propeller-based counter-current systems – whether horizontal configurations (Endless Pools from US, BINDER from Germany, EVA from Netherlands) or vertical installations (SWIMEO from France, Eco from China) – fundamentally rely on creating high-velocity turbulence that mixes with pool water to reduce flow speed, resulting in radially diminishing currents centered on the discharge port. This ‘turbulent dissipation’ methodology not only exhibits high energy consumption and suboptimal user experience, but more critically poses inherent safety risks.
To address these limitations, SWIMILES has pioneered a paddlewheel-driven laminar flow generator, seamlessly integrated with modular pool architectures.
| Paddlewheel | Propeller | |
| Mechanism | Radical-flflow impeller with waterwheel-blade design |
Axial-flow accelerator with |
|
Flow Velocity and Water Flow Distribution |
Stable and even | High-velocity jet stream |
| Initial Flow Velocity | 1-2 m/s | >10 m/s, the mainstream is concentrated near the center |
| Turbulence | NO | Signifificant turbulence can create discomfort for swimmers. Competing manufacturers implement flflow management systems such as buffer tanks or honeycomb flflow panels to regulate water movement, but these stabilization features inherently reduce operational efficiency |
| Power-to-Flow Ratio | 800 m³/h per 1000W | 100-150 m³/h per 1000W |
| Representative Brands |
SWIMILES (CHN) SwimEx (US) |
Endless Pools (US) BINDER (DEU) EVA (NLD) SWIMEO (FRA) Eco (CHN) |
BLDC VS. Induction Motor VS. Hydraulic Motor
BLDC (Brushless DC Motors), induction motors, and hydraulic motors serve as the three primary power solutions for counter-current generators. Manufacturers typically implement one dominant technology based on application scenarios and cost structures.
SWIMILES’s all-in-one motor-drive system seamlessly merges the motor and driver into a compact, factory-sealed unit. Through proprietary resin encapsulation technology, it delivers military-grade waterproofing (IP68 certified) while keeping critical components within 7°C of ambient pool temperatures.
| BLDC | Hydraulic Motor | Induction Motor | |
| Mechanism | Permanent magnets and inductor coils interact to generate electromagnetic force |
The electric motor drives an oil pump, which transmits hydraulic fluid to power a hydraulic motor |
Electromagnetic interaction between stator and rotor windings produces mechanical torque |
|
Voltage in Wet Conditions |
24V DC | / | 110-380V AC |
| Safety | YES | YES | NO |
| Efficiency | High, ±80% | Low, ≤50% | High, 90% |
| Cost | Relatively high | Relatively high | Low |
| Strengths | Safe, high efficiency, submersible operation with simplifified structural design |
Safe | Cost-effective |
| Weaknesses |
Relatively high cost; complex control system |
Low efficient; hydraulic |
Safety hazard; mandatory dry-wet segregation; power units require external pool placement, leading to constrained structural design |
| Representative Brands |
SWIMILES (CHN) BINDER (DEU) EVA (NLD) SWIMEO (FRA) |
Endless Pools (US) |
Eco (CHN) SwimEx (US) |

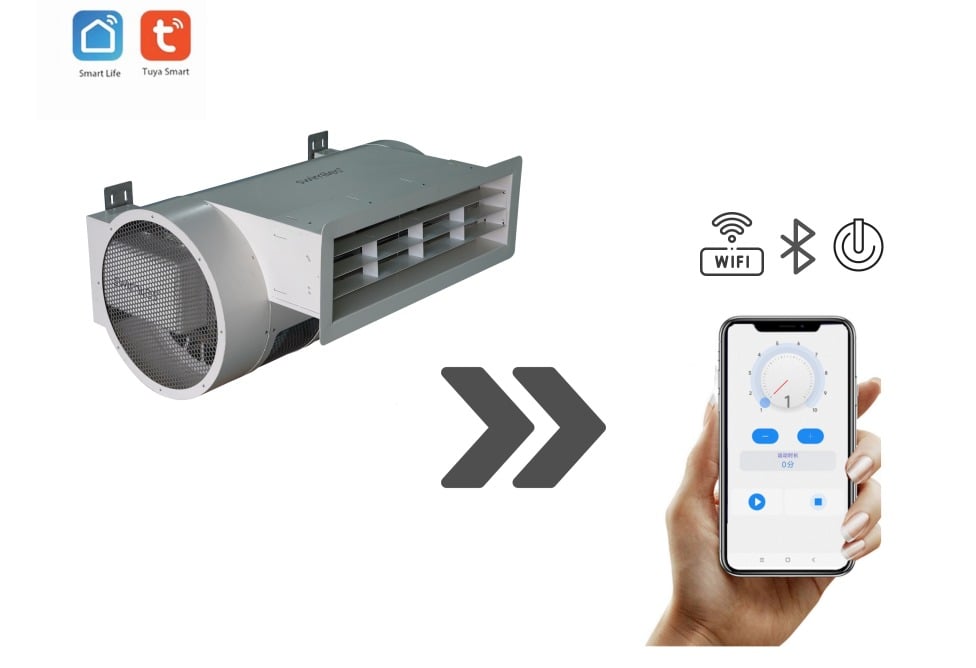

Intelligent Control Hub for Counter-Current System
Mobile-Oriented Real-Time Regulation via Tuya IoT Platform
-The SWIMILES’s Counter- Current System offers smart control through mobile devices like smartphones and tablets.
-Using the Tuya Smart app (available on both Apple App Store and Google Play), users can remotely manage operations.
-The app enables customized programming of swimming modes, including time duration and flow speed settings.
-Featuring COMBO connectivity technology that combines Wi-Fi and Bluetooth, the system maintains seamless responsiveness whether controlling nearby or from a distance.
Why Choose Us
-The system is powered by a safe 24V low-voltage BLDC motor, eliminating electrical hazards.
-IP68 waterproof rating ensures full protection against moisture and electrical leaks.
-Our energy-efficient drive system delivers 7 times the value of similar products, helping you save more.
-Smart flow control adjusts to your usage, cutting down on unnecessary power consumption.
-With built-in Wi-Fi and Bluetooth, you can control it whenever you want.
